GPS to KML - coloured by speed

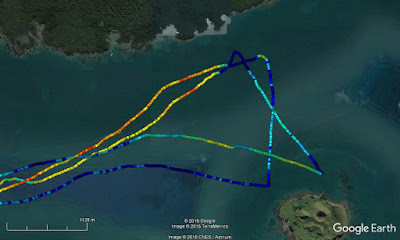

Convert a GPS text file to a track that can be loaded into Google Earth, and coloured to reflect speed.
Requires Excel Professional to run VBA macro.

This code is setup for Velocitek GPS which is designed for sailing and motor sports. However it is simple to customise to any other GPS with data in text format. If there is demand for other formats, please comment.

Colours can represent another quantity, such as altitude.

Other GPS formats They need a new module to reformat data to these columns:
Column 1 is time, col 3 latitude DD.DDD, col 4 longitude DDD.DDDD, col 5 is speed, or other variable.

See separate page for macro code and notes.

Macro code is below. Paste into an Microsoft Excel module.

Run the Sub VCC2KML for Velocitek data opened as read-only Workbook..

General Notes
There are routines to cull the output with a minimum step between points. This can dramatically reduce filesize.

Fast & slow colour ranges are suggested by Max(speed) and Average(speed) - 2x StDev, but can be over-ridden.


Writing the KML file is a bottleneck and several subs are devoted to speeding this as much as I've managed to find via Google.


Open the VCC file in Excel as Read-only:

Run VCC2KML
Pick folder and filename for output.
Open KML in Google Earth.

	Option Explicit
	Public sKML As String
	Public GradientColorName()
	Public s1 As String, s2 As String, s3 As String, s4 As String, s5 As String, s6 As String
	Sub VCC2KML()
	Dim r As Range
	Dim d
	Dim rowDate As Long, colDate As Long
	colDate = Cells.Find(What:="/CapturedTrack/Trackpoints/Trackpoint/@dateTime", _
	SearchDirection:=xlPrevious, _
	SearchOrder:=xlByColumns).Column
	'assumes Velocitek has time, h, Lat Lon spd continuous. Could be buggy
	Set r = ActiveSheet.Cells(3, colDate).Resize(Application.CountA(Columns(colDate)) - 1, 5)
	d = r.Value
	Call GPSLLSpd2KML(d)
	Set r = Nothing
	End Sub
	Sub GPSLLSpd2KML(d)
	Dim dCull, dSpd
	Dim r As Range
	Dim colorIdx As Long
	Dim lon As Double, lat As Double
	Dim SOG As Double, time As String
	Dim minSpdPlot As Double, maxSpdPlot As Double
	Dim i As Long
	Dim OrigNPts As Long, CulledNPts As Long
	Dim maxDistBetwPts As Double
	Dim minSpd As Double, maxSpd As Double, AvSpd As Double, SDSPd As Double
	Dim title As String
	Dim path As String, fnm As String
	Const colTime As Long = 1 'unused
	Const colLat As Long = 3 'DD.DDD
	Const colLon As Long = 4 'DD.DDD
	Const colSOG As Long = 5'this could be Altitude for example
	Dim ccOffset As Long 'do not delete
	Dim ccIncrement As Long
	ccIncrement = 64 'fiddle with this to speed up or not. seems that between 2 and 1000 is OK
	ccOffset = 0
	sKML = vbNullString
	s1 = "<Placemark>" & vbCr & " <styleUrl>#" 'to speed up output of placemarks
	s2 = "</styleUrl>" & vbCr & " <Point>" & vbCr & " <coordinates>" & vbCr & " "
	s3 = ",0" & vbCr & " </coordinates>" & vbCr & " </Point>" & vbCr & "</Placemark>" & vbCr
	s4 = "<Placemark>" & vbCr & "<description>"
	s5 = "</description>" & vbCr
	s6 = " <styleUrl>#"
	'
	' <Placemark>
	' <TimeStamp>
	' <when>2007-01-14T21:05:02Z</when>
	' </TimeStamp>
	' <styleUrl>#paddle-a</styleUrl>
	GradientColorName = Array("darkblue", "blue", "deepskyblue", "cyan", "MediumSpringGreen", "yellowgreen", "yellow", "orange", "OrangeRed", "red")
	'coarsen track points
	maxDistBetwPts = InputBox("Input min distance between pts, metres", "Cull redundant points", 3)
	Call CullData(d, dCull, maxDistBetwPts, OrigNPts, CulledNPts)
	ReDim dSpd(1 To UBound(dCull, 1), 1 To 1)
	For i = 1 To UBound(dCull, 1)
	dSpd(i, 1) = dCull(i, 5)
	Next
	Call SpdStats(dSpd, minSpd, maxSpd, AvSpd, SDSPd)
	title = "Spds for Colour: " & _
	"Min= " & Format(minSpd, "0.0") & " Max= " & Format(maxSpd, "0.0") & _
	" Av= " & Format(AvSpd, "0.0") & " SD= " & Format(SDSPd, "0.0")
	'default min Speed is Average-2*StDev
	minSpdPlot = InputBox("Enter low speed for Blue", title, Format(findMax(AvSpd - 2 * SDSPd, 0), "0"))
	maxSpdPlot = InputBox("Enter high speed for Red", title, Format(maxSpd, "0.0"))
	Call outputLine3(sKML, "<?xml version=""1.0"" encoding=""UTF-8""?>", ccOffset, ccIncrement)
	Call outputLine3(sKML, "<kml xmlns=""http://www.opengis.net/kml/2.2"">", ccOffset, ccIncrement)
	Call outputLine3(sKML, "<Document>", ccOffset, ccIncrement)
	Call setupStyleIcons(ccOffset, ccIncrement)
	Dim m
	m = Application.StatusBar
	For i = 1 To UBound(dCull, 1)
	Application.StatusBar = "writing KML " & Format(i / UBound(dCull, 1), "0" & "%") 'ADDS ~5% to time
	SOG = CDbl(dCull(i, colSOG))
	colorIdx = GradientColor(SOG, minSpdPlot, maxSpdPlot, 1, 10)
	lon = CDbl(dCull(i, colLon))
	lat = CDbl(dCull(i, colLat))
	time = CStr(dCull(i, colTime))
	Call makePlacemarkWithTimeAndSpeed(CStr(GradientColorName(colorIdx - 1)), lon, lat, time, SOG, ccOffset, ccIncrement)
	Next
	Application.StatusBar = m
	Call outputLine3(sKML, "</Document>", ccOffset, ccIncrement)
	Call outputLine3(sKML, "</kml>", ccOffset, ccIncrement)
	Call writeKMLFile
	End Sub
	Sub CullData(arr1, cullArr, maxDist As Double, OrigNPts As Long, CulledNPts As Long)
	Dim arrD1Cull()
	Dim i As Long, j As Long, k As Long 'i-orig array, j - culled array, k - columns
	Dim cullDist As Boolean
	Dim cntDist As Long
	Dim nRowsData As Long, nColsData As Long
	Dim DistOrig2CullPt As Double
	Const colLat As Long = 3
	Const colLon As Long = 4
	nRowsData = UBound(arr1, 1)
	nColsData = UBound(arr1, 2)
	ReDim arrD1Cull(1 To nRowsData, 1 To nColsData)
	'initialise first row
	For k = 1 To nColsData
	arrD1Cull(1, k) = arr1(1, k)
	Next
	j = 1 'counter for culled array
	cullDist = True
	For i = 1 To nRowsData
	DistOrig2CullPt = 1852 * PsnToRange(CDbl(arr1(i, colLat)), CDbl(arr1(i, colLon)), CDbl(arrD1Cull(j, colLat)), CDbl(arrD1Cull(j, colLon)))
	If DistOrig2CullPt > maxDist Then
	cullDist = False
	cntDist = cntDist + 1 'culled points count
	j = j + 1
	For k = 1 To nColsData
	arrD1Cull(j, k) = arr1(i, k)
	Next
	cullDist = True
	End If
	Next
	'resize culledArray
	ReDim cullArr(1 To cntDist, 1 To nColsData)
	For i = 1 To cntDist
	For j = 1 To nColsData
	cullArr(i, j) = arrD1Cull(i, j)
	Next
	Next
	OrigNPts = nRowsData
	CulledNPts = OrigNPts - cntDist + 1
	End Sub
	Sub writeKMLFile()
	Call TxtFileDriver(sKML, "kml")
	End Sub
	Function PsnToRange(P1LatDeg As Double, P1LonDeg As Double, P2LatDeg As Double, P2LonDeg As Double) ', VMag As VectorType)
	'nm
	Dim y As Double
	Dim X As Double
	Const rad As Double = 57.2957795130823
	X = 60 * ModOneEighty(P2LonDeg - P1LonDeg) * Cos(P1LatDeg / rad)
	y = 60 * ModOneEighty(P2LatDeg - P1LatDeg)
	PsnToRange = Sqr(X * X + y * y)
	End Function
	Sub SpdStats(d, minSpd As Double, maxSpd As Double, AvSpd As Double, SDSPd As Double)
	With Application.WorksheetFunction
	minSpd = .Min(d)
	maxSpd = .Max(d)
	AvSpd = .Average(d)
	SDSPd = .StDev(d)
	End With
	End Sub
	Sub outputLine3(ByRef Dest As String, ByRef Source As String, ByRef ccOffset As Long, ByRef ccIncrement As Long)
	Call Concat2(Dest, Source, ccOffset, ccIncrement)
	End Sub
	Sub Concat2(ByRef Dest As String, ByRef Source As String, ccOffset As Long, ccIncrement As Long)
	'dim coffset as long put at top of calling Sub. say 1000 ? It increases string by this length in chunks
	'Public ccOffset As Long 'do not delete
	'Public ccIncrement As Long 'Number of characters to allocate every timePublic GradientColorName()
	Dim L As Long
	L = Len(Source)
	If (ccOffset + L) >= Len(Dest) Then
	If L > ccIncrement Then
	Dest = Dest & Space$(L)
	Else
	Dest = Dest & Space$(ccIncrement)
	End If
	End If
	Mid$(Dest, ccOffset + 1, L) = Source
	ccOffset = ccOffset + L
	Dest = Left$(Dest, ccOffset)
	End Sub
	Sub setupStyleIcons(ccOffset As Long, ccIncrement As Long)
	Dim i As Long
	Dim strColor As String
	Dim strHexColor As String
	For i = 1 To 10
	strColor = GradientColorName(i - 1)
	strHexColor = GradientColorHex(i - 1)
	Call outputLine3(sKML, "<Style id=""" & strColor & """>", ccOffset, ccIncrement)
	Call outputLine3(sKML, " <IconStyle>", ccOffset, ccIncrement)
	Call outputLine3(sKML, " <color>" & strHexColor & "</color>", ccOffset, ccIncrement)
	Call outputLine3(sKML, " <scale>.3</scale>", ccOffset, ccIncrement)
	Call outputLine3(sKML, " <Icon>", ccOffset, ccIncrement)
	Call outputLine3(sKML, " <href>http://maps.google.com/mapfiles/kml/pal2/icon26.png</href>", ccOffset, ccIncrement)
	Call outputLine3(sKML, " </Icon>", ccOffset, ccIncrement)
	Call outputLine3(sKML, " </IconStyle>", ccOffset, ccIncrement)
	Call outputLine3(sKML, "</Style>", ccOffset, ccIncrement)
	Next
	End Sub
	Sub makePlacemarkWithTimeAndSpeed(ByRef colorNm As String, lon As Double, lat As Double, _
	time As String, SOG As Double, ccOffset As Long, ByRef ccIncrement As Long)
	Call outputLine3(sKML, s4 & time & vbCr & SOG & s5, ccOffset, ccIncrement)
	Call outputLine3(sKML, s6 & colorNm & s2 & lon & "," & lat & s3, ccOffset, ccIncrement)
	End Sub
	Sub TxtFileDriver(txt As String, Optional extension)
	Dim path As String, fnm As String
	Call Folder_Picker(path)
	If Not IsMissing(extension) Then
	fnm = InputBox("type filename")
	fnm = fnm & "." & CStr(extension)
	Else
	fnm = InputBox("type filename with extension")
	End If
	Call writeTxtFile(txt, path, fnm)
	End Sub
	Sub Folder_Picker(fldr As String)
	With Application.FileDialog(msoFileDialogFolderPicker)
	.InitialFileName = ActiveWorkbook.path & "\"
	.Show
	If .SelectedItems.Count = 0 Then GoTo 1
	fldr = .SelectedItems(1)
	fldr = fldr & "\"
	1 End With
	End Sub
	Sub writeTxtFile(txt As String, path As String, fnm As String, Optional extension) 'path As String, fnm As String)
	Dim fs, A
	fnm = makePathFileExt(path, fnm)
	Set fs = CreateObject("Scripting.FileSystemObject")
	Set A = fs.CreateTextFile(fnm, True, True)
	A.WriteLine (txt)
	Close
	End Sub
	Function findMax(A As Double, b As Double) As Double
	findMax = -(A > b) * A + -(b >= A) * b
	End Function
	Function GradientColor(val As Double, lowVal As Double, highVal As Double, _
	lowColorIndex As Long, NumbrColors As Long) As Long
	Dim ratio As Single
	ratio = (val - lowVal) / (highVal - lowVal)
	If ratio > 1 Then ratio = 1
	GradientColor = Int(ratio * (NumbrColors - 1)) + lowColorIndex
	If GradientColor > NumbrColors + lowColorIndex Then GradientColor = NumbrColors + lowColorIndex 'saturated max
	If GradientColor < lowColorIndex Then GradientColor = lowColorIndex 'saturated min
	End Function
	Function ModThreeSixty(A As Double) As Double
	ModThreeSixty = A - 360 * Int(A / 360)
	End Function
	Function ModOneEighty(A As Double) As Double
	'final range value is between
	' 180 and -180 degrees
	ModOneEighty = ModThreeSixty(A + 180) - 180
	End Function
	Function GradientColorHex(colorIdx As Long) As String 'changes colors 16 to 32 from blue to red
	' Colours based on Nile/Hairyears thermal gradient scale
	Dim i As Long
	Dim arr() As Variant
	i = colorIdx
	' arr = Array("darkblue", "blue", "deepskyblue", "cyan", "MediumSpringGreen", "yellowgreen", "yellow", "orange", "OrangeRed", "red")
	arr = Array("ff8b0000", "ffff0000", "ffffbf00", "ffffff00", "ff9afa00", "ff32cd9a", "ff00ffff", "ff00a5ff", "ff0045ff", "ff0000ff")
	GradientColorHex = arr(i)
	End Function
	Function makePathFileExt(path As String, fnm As String, Optional extension) As String
	If Not IsMissing(extension) Then
	fnm = fnm & "." & extension
	ElseIf Mid(fnm, Len(fnm) - 3, 1) = "." Then
	'fnm=fnm 'assumes .xxx format
	Else
	fnm = fnm & "." & "txt"
	End If
	makePathFileExt = path & fnm
	End Function
